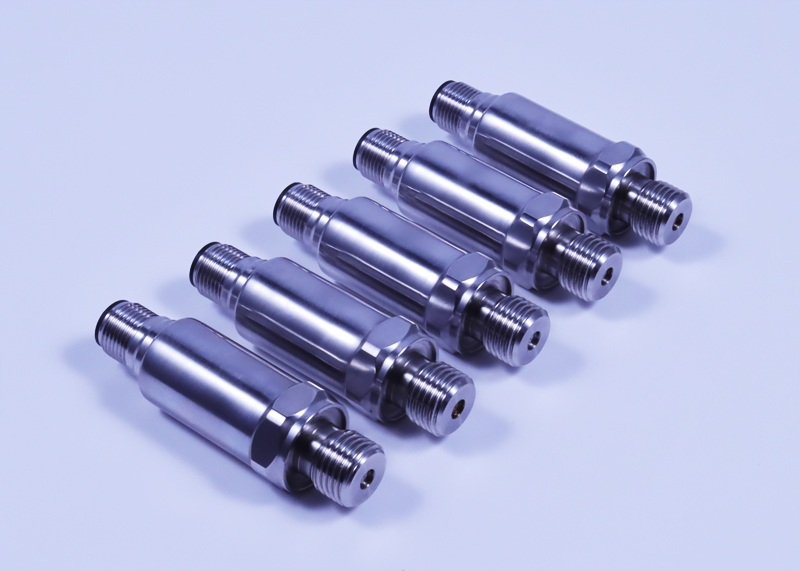

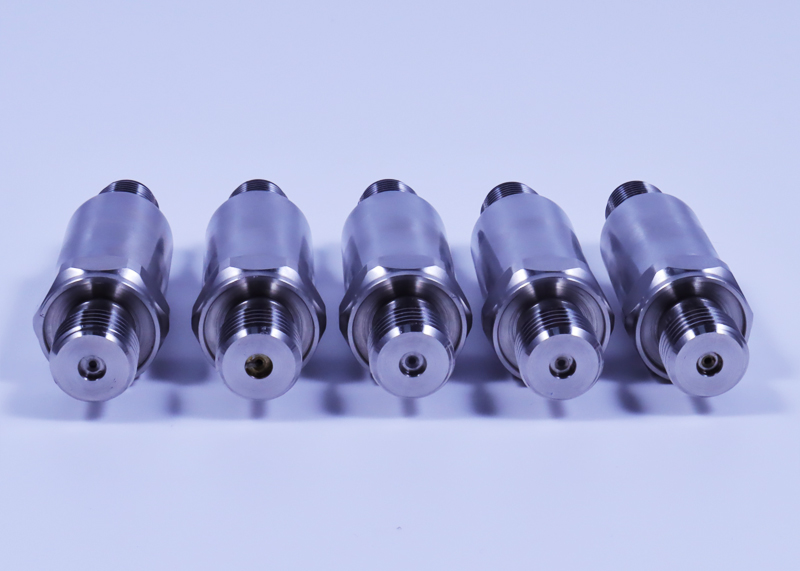

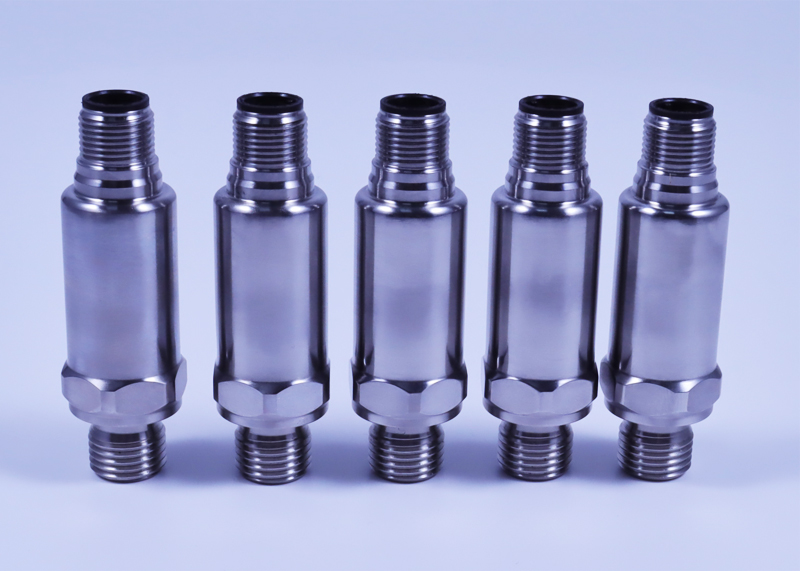

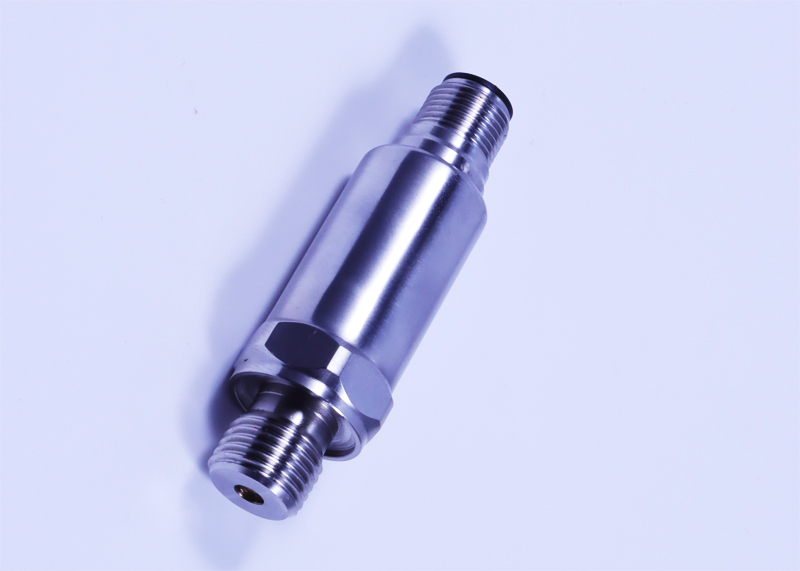

PT500-DAVS壓力變送器
采用純國產感壓芯片；選進的貼片工藝；
高精度、穩定、數字標定調節、放大集成電路；
輸出信號4-20mA二線制；
可替代Hirschmann品牌DAVS系列產品；
M12一體連接器；

常用關鍵字：
DAVS壓力變送器  替代DAVS變送器 替換DAVS變送器
Hirschmann傳感器  Hirschmann變送器


PT500-DAVS Pressure Transmitter
It adopts pure domestic pressure sensitive chip and selective placement technology;
High precision, stable, digital calibration adjustment, amplification integrated circuit;
Output signal 4-20mA two-wire system;
It can replace Hirschmann Davs series products;
M12 integrated connector;

Common keywords:
Davs pressure transmitter replaces Davs transmitter replaces Davs transmitter
Hirschmann sensor Hirschmann transmitter

芯       片：
采用純國產感壓芯片；
選進的貼片工藝；
零點、滿度，溫補、線性補償；
高阻抗、高精度、高穩定性；
100萬次使用壽命以上；

信號處理及輸出：
24位ADC采樣處理芯片；
DSP數字信號調理算法；
多點性線溫度校準；
電壓電流過載保護；
標準工業信號輸出：4-20mA(二線制)，0-20mA(三線制)，0-5VDC，0-10VDC，0.5-4.5VDC(三線制);
采用先進的32bit微處理器和24bit ADC

結       構：
厚膜結構：深度氬弧焊接，連接彈性材料與過程接頭，強度高，抗沖擊，耐疲勞；
溥膜結構：激光焊接，連接彈性材料與過程接頭，硅油介質傳遞壓力，響應快，耐疲勞，小量程；
304/316殼體，強度可靠堅固；

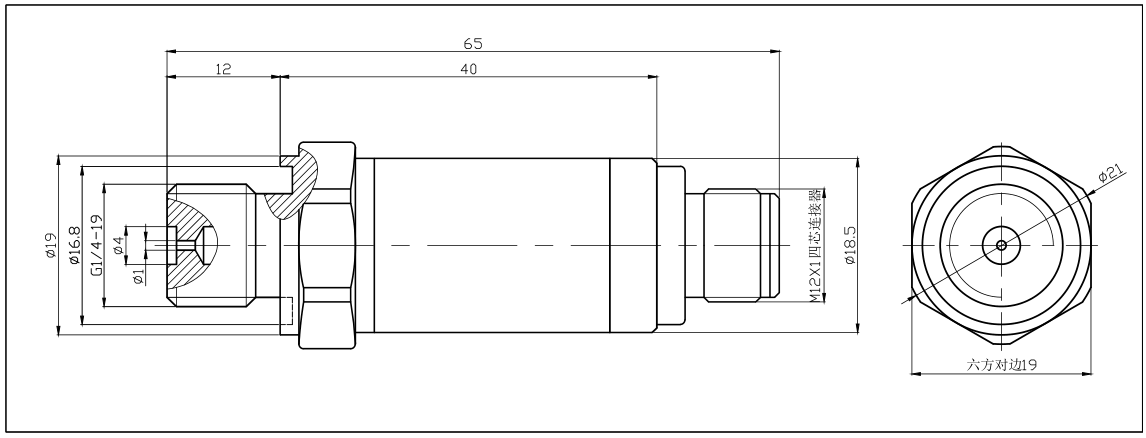

整體結構小巧，整體尺寸：直徑19X長65mm，過程連接標準G1/4；
過程連接材料：304或316；

應      用：
油壓、水壓、氣壓壓力測量與監控；
工業/電力/石油/自動化等領域的設備壓力測量；

Chip:
Pure domestic pressure sensing chip is used;
The selected placement process;
Zero point, fullness, temperature compensation and linear compensation;
High impedance, high precision and high stability;
More than 1 million times of service life;

Signal processing and output:
24 bit ADC sampling and processing chip;
DSP digital signal conditioning algorithm;
Multipoint linear temperature calibration;
Voltage and current overload protection;
Standard industrial signal output: 4-20mA (two-wire system), 0-20mA (three wire system), 0-5vdc, 0-10vdc, 0.5-4.5vdc (three wire system);
Advanced 32 bit microprocessor and 24 bit ADC are adopted

Structure:
Thick film structure: deep argon arc welding, connecting elastic material and process joint, high strength, impact resistance and fatigue resistance;
PU film structure: laser welding, connecting elastic material and process joint, transmitting pressure with silicone oil medium, fast response, fatigue resistance, small range;
304 / 316 shell, reliable and strong strength;
The overall size is 19x in diameter and 65mm in length. The process connection standard is G1 / 4;
Process connection material: 304 or 316;

Application:
Measurement and monitoring of oil pressure, water pressure and air pressure;
Equipment pressure measurement in industrial / power / Petroleum / automation fields;

過程連接：G1/4
