訂購注意事項
PT500-540 TTL數字壓力變送器訂購注意事項
1、產品量程選擇：
為了使產品精度、壽命、穩定性等功能達到最佳效果，產品的量程選 擇參照以下公式計算：
量程 = 系統最大壓力 X （1.2-1.5）倍；
產品的實際測量壓力范圍，應該在量程范圍的15%-80%；
2、產品供電及輸出：
供電范圍3-5VDC：
低功耗TTL-RTU輸出；
請先了解通訊協議；
3、用戶要了解產品的測量介質特性：
介質規格、介質溫度、介質純度（是否含有雜質或顆粒等）；
4、用戶要了解產品的安裝環境及安裝方式：
室內或室外安裝；
環境溫度；
要求的密封等級；
設備的振動范圍；

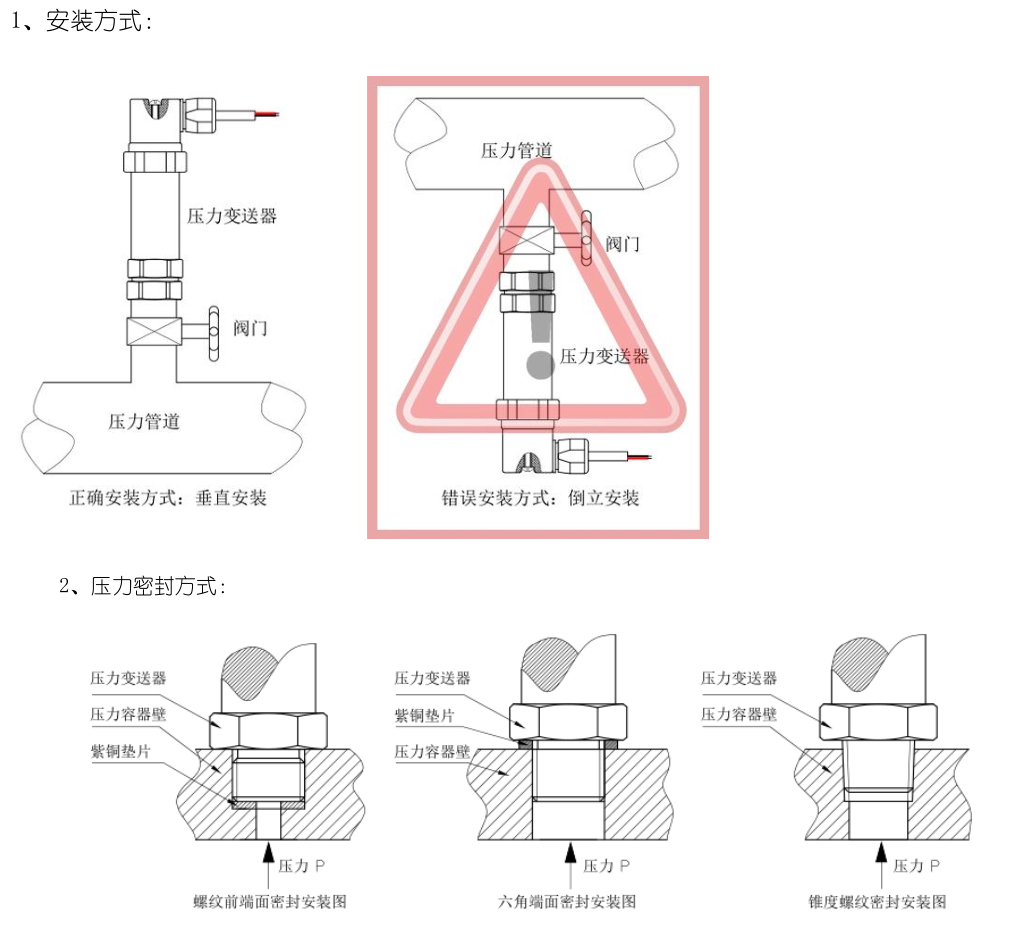

壓力密封方式：錐度密封、端面密封、弧面密封、球面密封；

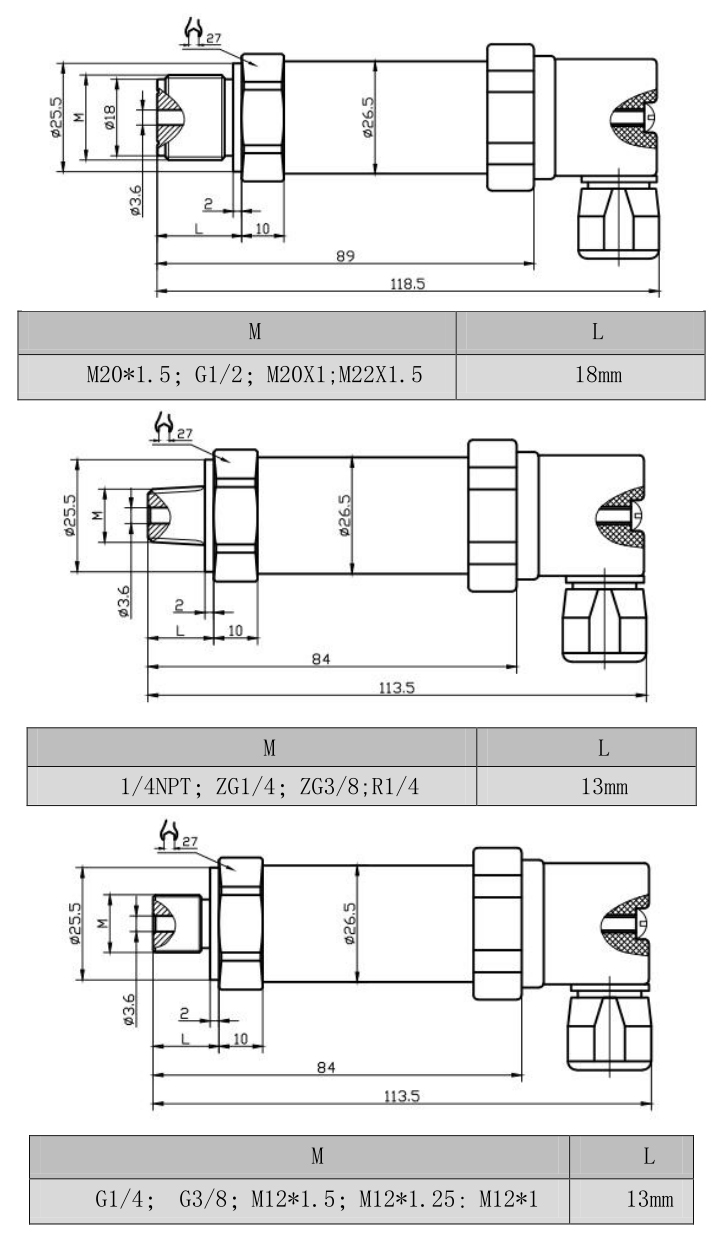

安裝空間是否滿足產品外形尺寸；
Precautions for ordering PT500-540 TTL digital pressure transmitter
1. Product range selection:
In order to achieve the best effect of product accuracy, life, stability and other functions, the range selection of the product is calculated by referring to the following formula:
Range = x (1.2-1.5) times of the maximum system pressure;
The actual measuring pressure range of the product should be 15% - 80% of the range;
2. Product power supply and output:
Power supply range 3-5vdc:
Low power ttl-rtu output;

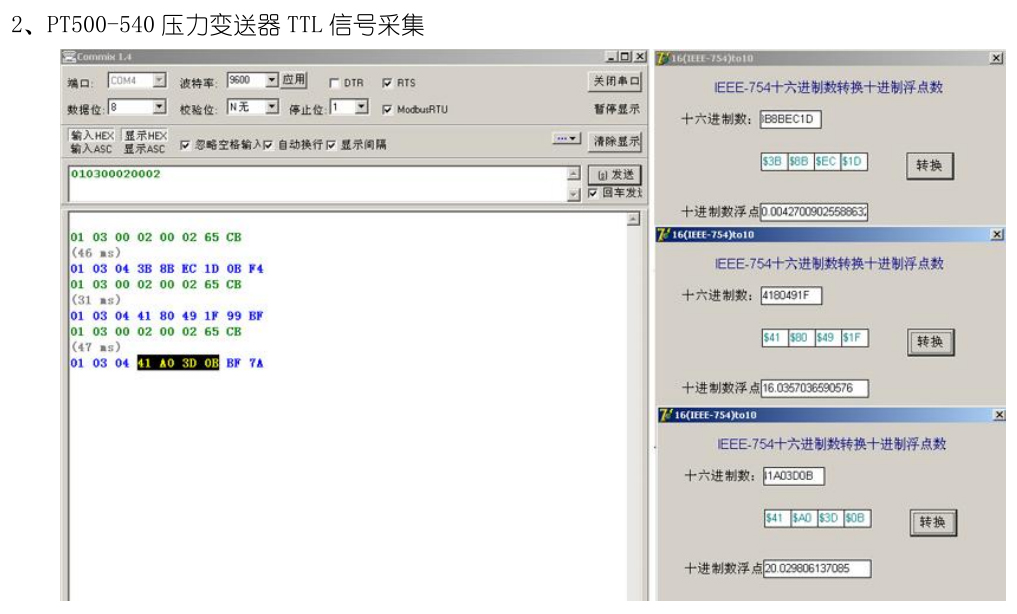

Please understand the communication protocol first;
3. The user should understand the measurement medium characteristics of the product:
Medium specification, medium temperature, medium purity (whether containing impurities or particles, etc.);
4. Users should understand the installation environment and installation method of the product:
Indoor or outdoor installation;
Ambient temperature;
Required sealing level;
Vibration range of equipment;
Pressure seal: taper seal, face seal, arc seal, spherical seal;
Whether the installation space meets the overall dimension of the product;
使用注意事項
PT500-540 TTL數字壓力變送器使用注意事項
產品供電3.6VDC（范圍：3-5VDC）；
嚴禁使用硬物（如：螺絲刀、手指、鐵釘?shù)龋┤ナ沟脡盒倔w受壓力測量輸出；

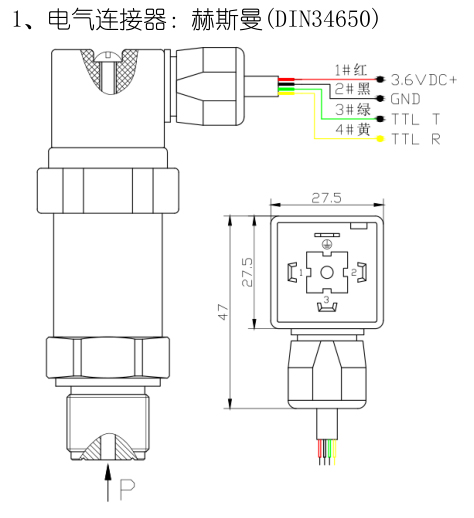

電源和信號線按訂購產品規格要求，正確接線；
產品安裝時，受力部位為“過程連接六方扳手位”，扳手規格與六方相對應；
嚴禁被測系統的介質溫度、壓力量程、激勵電壓超過變送器的額定使用范圍；
注意保護變送器引出電纜，現場使用跨度過大時，建議使用金屬管保護或架空；
壓力變送器屬精密計量儀器，切勿強加沖擊、摔打，以免損壞芯體；
產品安裝于通風、干燥、無強腐蝕環境，露天安裝加防護裝置，避免陽光直接照射；
Precautions for PT500-540 TTL digital pressure transmitter
Product power supply 3.6vdc (range: 3-5vdc);
It is strictly prohibited to use hard objects (such as screwdriver, finger, iron nail, etc.) to make the pressure core body under pressure measurement output;
The power and signal wires shall be correctly wired according to the specifications of the ordered products;
When the product is installed, the stressed part is "process connection hexagon wrench position", and the wrench specification corresponds to hexagon;
It is strictly prohibited that the medium temperature, pressure range and excitation voltage of the tested system exceed the rated use range of the transmitter;
Pay attention to protect the outgoing cable of the transmitter. When the span is too large on site, it is recommended to use metal pipe for protection or overhead;
The pressure transmitter is a precision measuring instrument, do not impose impact or smash to avoid damaging the core;
The product is installed in a ventilated, dry and non corrosive environment, and installed in the open with protective devices to avoid direct sunlight;
