芯? ? ? ?片：
采用進口感壓芯片；選進的貼片工藝，具有零點、滿量程補償、溫度補償；
應變計芯體，高強度彈性形變感壓材料，配有溫度補償，具有抗沖擊、耐疲勞性能優勢；
微機械加工工藝，一體化結構設計、整體彈性材料，無焊工藝，受壓1000MPA不會破裂，確保產品的安全性；

信號處理及輸出：
24位ADC采樣處理芯片；
DSP數字信號調理算法；
多點性線溫度校準；
電壓電流過載保護；
標準工業信號輸出：4-20mA(二線制)；
四位顯示壓力表頭，顯示范圍：-1999-9999，采樣速率：10次/S；

結? ? ? ?構：
結構小巧、全封焊結構、抗沖擊、耐疲勞、可靠性高、多種過程連接方式；
過程連接材料，304，四種密封方式可選：錐度密封、端面密封、弧面密封、球面密封；
DIN43650赫斯曼標準電氣連接器；
配套標準四芯屏蔽電纜；

應? ? ? 用：
大型液壓機械，液壓站的壓力測量；
水刀機，陶瓷線割機壓力測量與控制；
液壓系統管道及液壓設備壓力測量控制；
室內外高壓水泵等設備的壓力測量與控制；

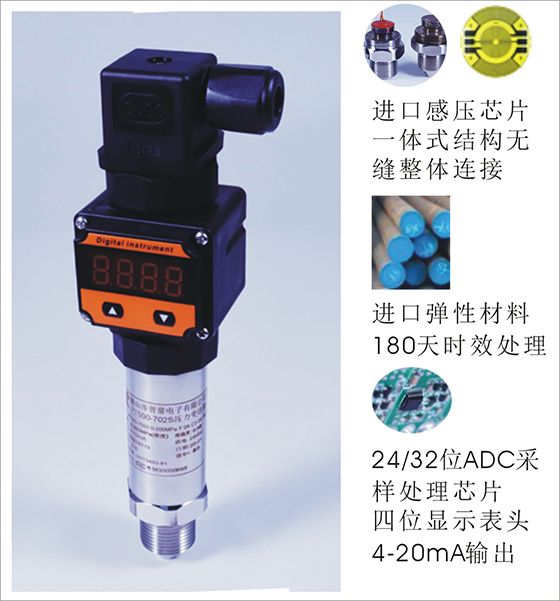

Chip:
Adopt imported voltage sensing chip; select the chip technology, with zero, full range compensation, temperature compensation;
Strain gauge core, high-strength elastic deformation pressure sensing material, equipped with temperature compensation, has the advantages of impact resistance and fatigue resistance;
Micromachining process, integrated structural design, integral elastic material, no welding process, 1000 MPa compression will not crack, to ensure the safety of the product;

Signal processing and output:
24 bit ADC sampling processing chip;
DSP digital signal conditioning algorithm;
Multipoint line temperature calibration;
Voltage and current overload protection;
Standard industrial signal output: 4-20mA (two-wire system);
Four digit pressure indicator, display range: - 1999-9999, sampling rate: 10 times / S;

Structure:
Small structure, full seal welding structure, impact resistance, fatigue resistance, high reliability, a variety of process connection;

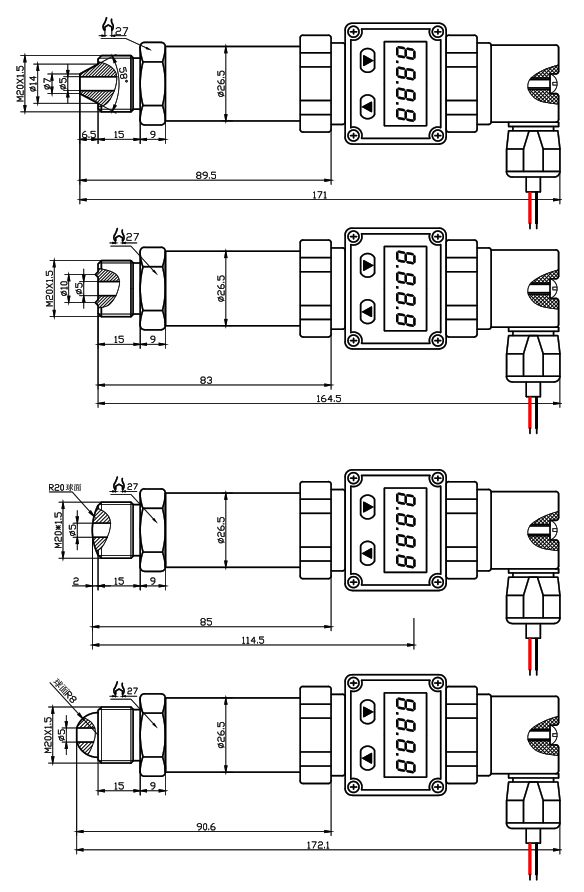

Process connection material, 304, four sealing methods are optional: taper seal, end face seal, arc face seal and spherical seal;

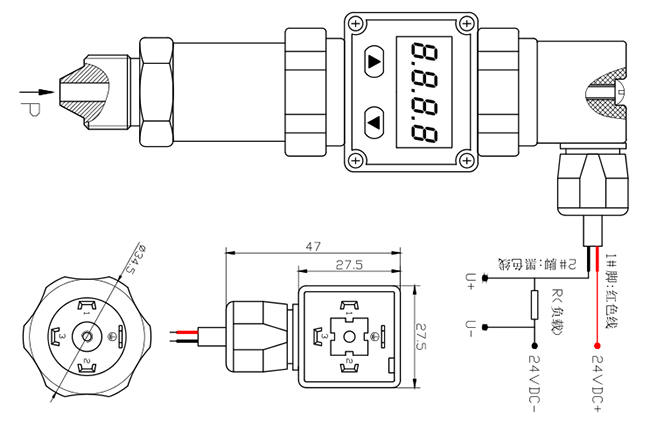

Din43650 Hersman standard electrical connector;
Supporting standard four core shielded cable;

Application:
Pressure measurement of large hydraulic machinery and hydraulic station;
Pressure measurement and control of water cutter and ceramic wire cutter;
Hydraulic system pipeline and hydraulic equipment pressure measurement control;
Pressure measurement and control of indoor and outdoor high-pressure water pump and other equipment;

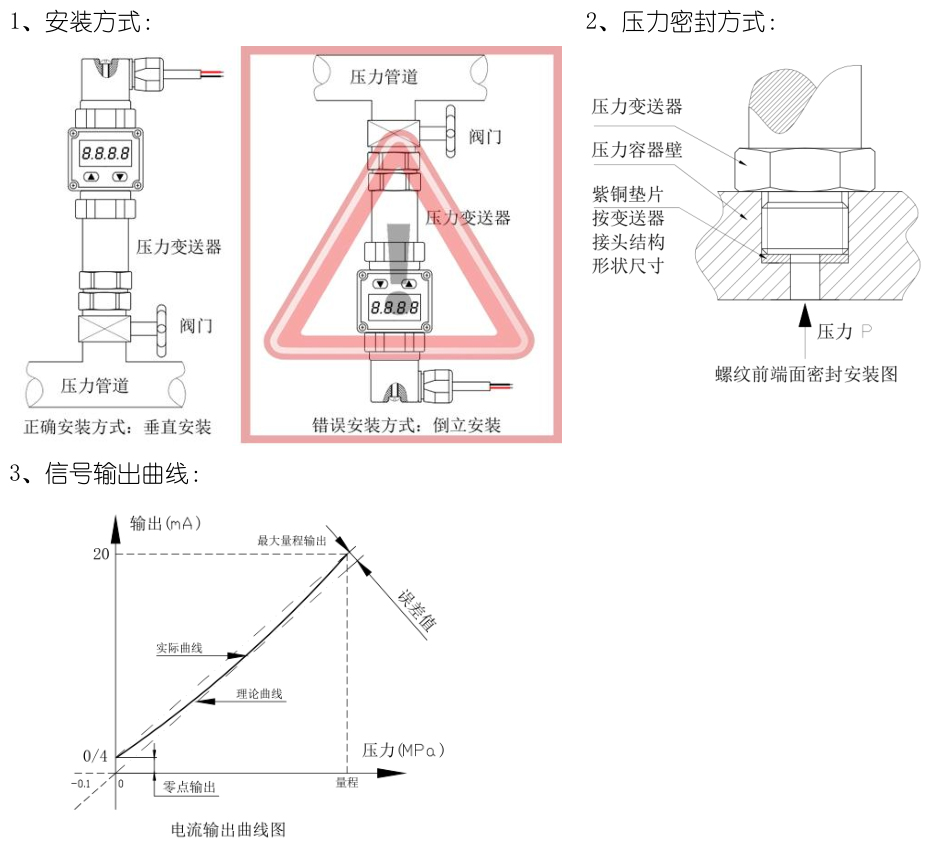

五、安裝方式
