訂購注意事項
1、產品量程選擇：
為了使產品精度、壽命、穩定性等功能達到最佳效果，產品的量程選 擇參照以下公式計算：
量程 = 系統最大壓力 X （1.2-1.5）倍；
產品的實際測量壓力范圍，應該在量程范圍的15%-80%；
2、產品供電及輸出：
供電范圍的選擇按產品的個輸出規格確定：
常規4-20mA/0-20mA、0-5V/10V輸出，直流12-30VDC供電；
通用RS485-RTU輸出，直流12-30VDC供電；
0.5-4.5VDC輸出，直流5VDC；
低功耗RS485-RTU輸出，直流3.1-6.1VDC；
RS485-RTU輸出時，請先了解通訊協議；
3、用戶要了解產品的測量介質特性：
介質規格、介質溫度、介質純度（是否含有雜質或顆粒等）；
4、用戶要了解產品的安裝環境及安裝方式：
室內或室外安裝；
環境溫度；
要求的密封等級；
設備的振動范圍；
安裝空間是否滿足產品外形尺寸；
Precautions for ordering PT500-601 input liquid level transmitter
1. Product range selection:
In order to achieve the best effect of product accuracy, service life, stability and other functions, the range selection of the product
Select the following formula for calculation:
Range = x (1.2-1.5) times of the maximum system pressure;
The actual measuring pressure range of the product should be 15% - 80% of the range;

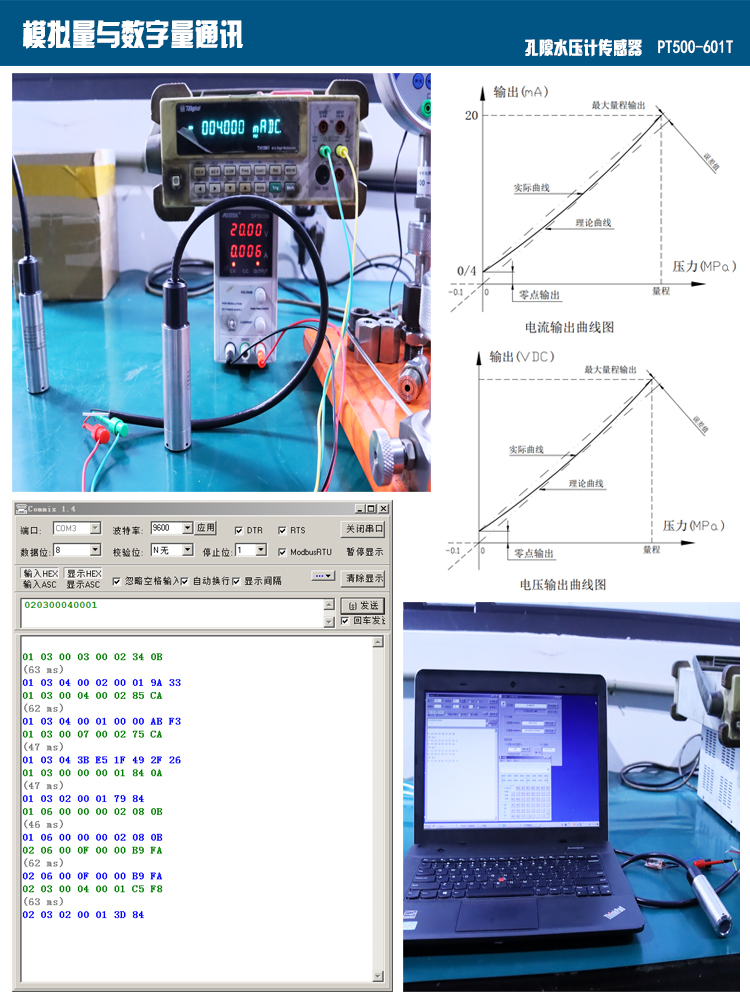

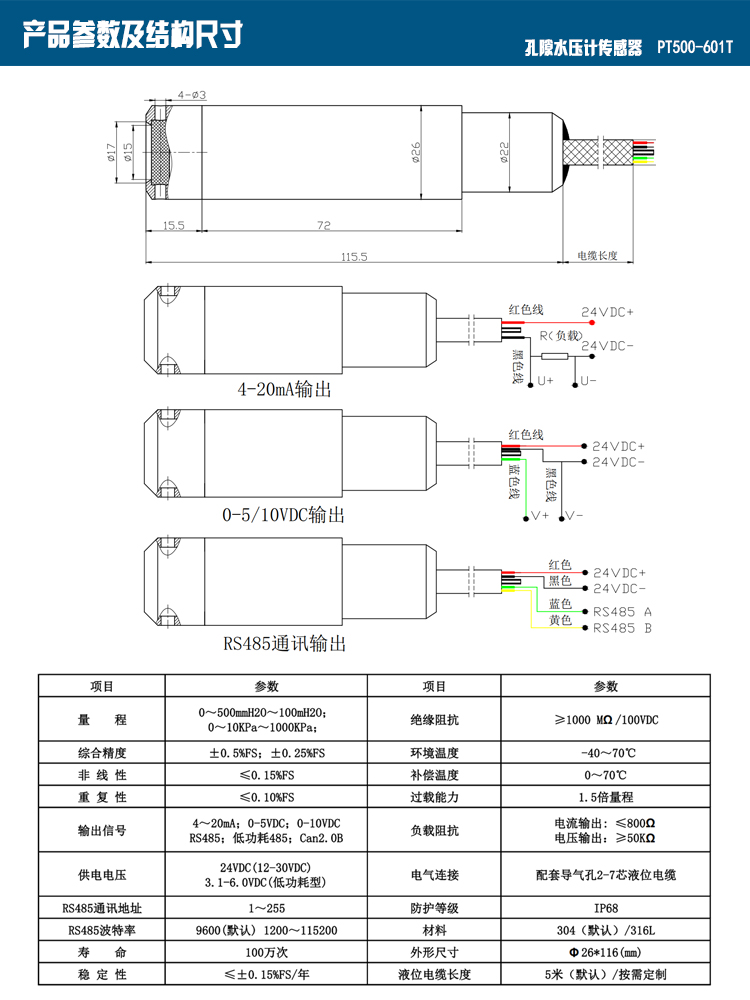

2. Product power supply and output:
The selection of power supply range is determined according to the output specifications of the product:
Conventional 4-20mA / 0-20mA, 0-5V / 10V output, DC 12-30vdc power supply;
General rs485-rtu output, DC 12-30vdc power supply;
0.5-4.5vdc output, DC 5VDC;
Low power rs485-rtu output, DC 3.1-6.1vdc;

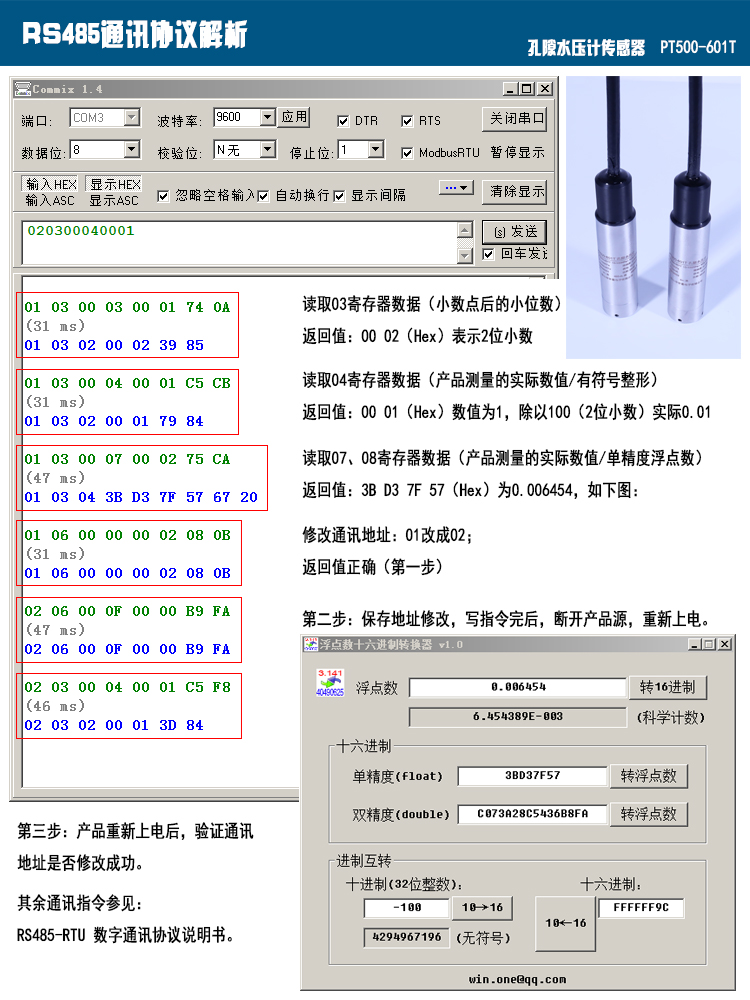

When output rs485-rtu, please understand the communication protocol first;
3. The user should understand the measurement medium characteristics of the product:
Medium specification, medium temperature, medium purity (whether containing impurities or particles, etc.);

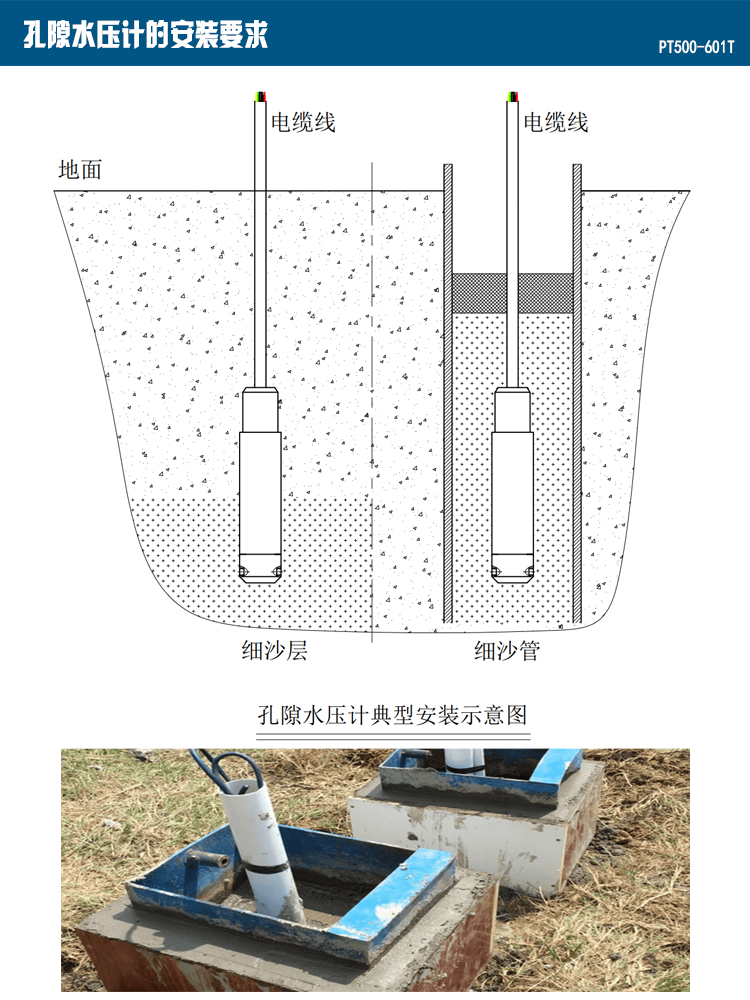

4. Users should understand the installation environment and installation method of the product:
Indoor or outdoor installation;
Ambient temperature;
Required sealing level;
Vibration range of equipment;
Whether the installation space meets the overall dimension of the product;
