使用注意事項
儀表供電類型及范圍參照儀表要求提供；

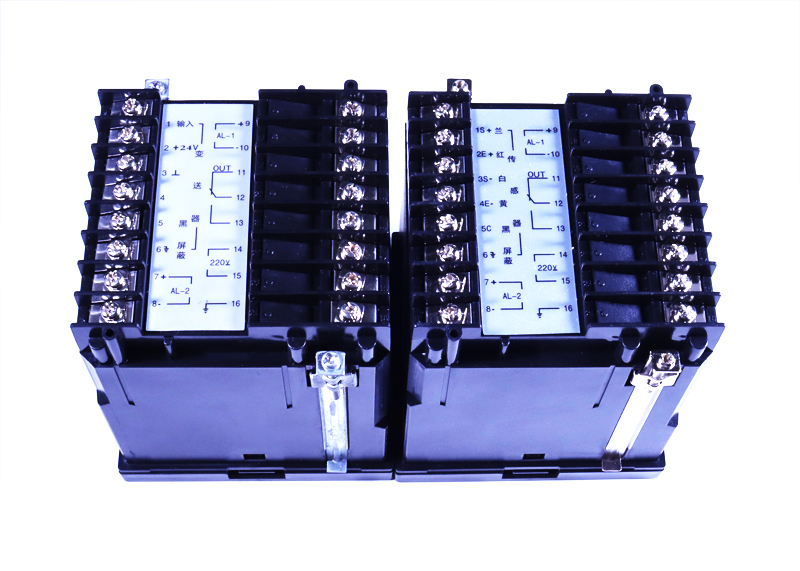

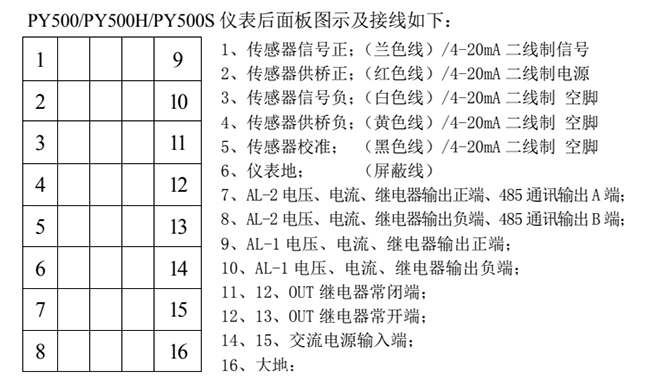

儀表16腳接地；
電源和信號線按訂購產品規格要求，正確接線；
儀表輸出端繼電器輸出功率嚴禁超出220V/1A或24V/1A；
注意保護儀表接入接出引出電纜，現場使用跨度過大時，建議使用金屬管保護或架空；
產品安裝于通風、干燥、無強腐蝕環境，露天安裝加防護裝置，避免陽光直接照射；
盡量避免直接接近引起干擾的用戶裝置或電器；
The type and scope of instrument power supply shall be provided according to the requirements of instrument;
Instrument 16 foot grounding;
Power supply and signal wire shall be correctly wired according to the requirements of product specification ordered;
The output power of the relay at the output end of the instrument shall not exceed 220v/1a or 24v/1a;
Pay attention to the protection instrument access and outgoing cable. When the span of field use is too large, it is recommended to use metal pipe to protect or overhead;
The product is installed in a ventilated, dry and non corrosive environment. Protective devices are installed in the open air to avoid direct sunlight;
Avoid direct access to user devices or appliances causing interference as far as possible;
