耐腐蝕數顯壓力變送器 PT500-704S

產品優勢
規格參數
訂購注意事項
使用注意事項
常見問題
我要提建議

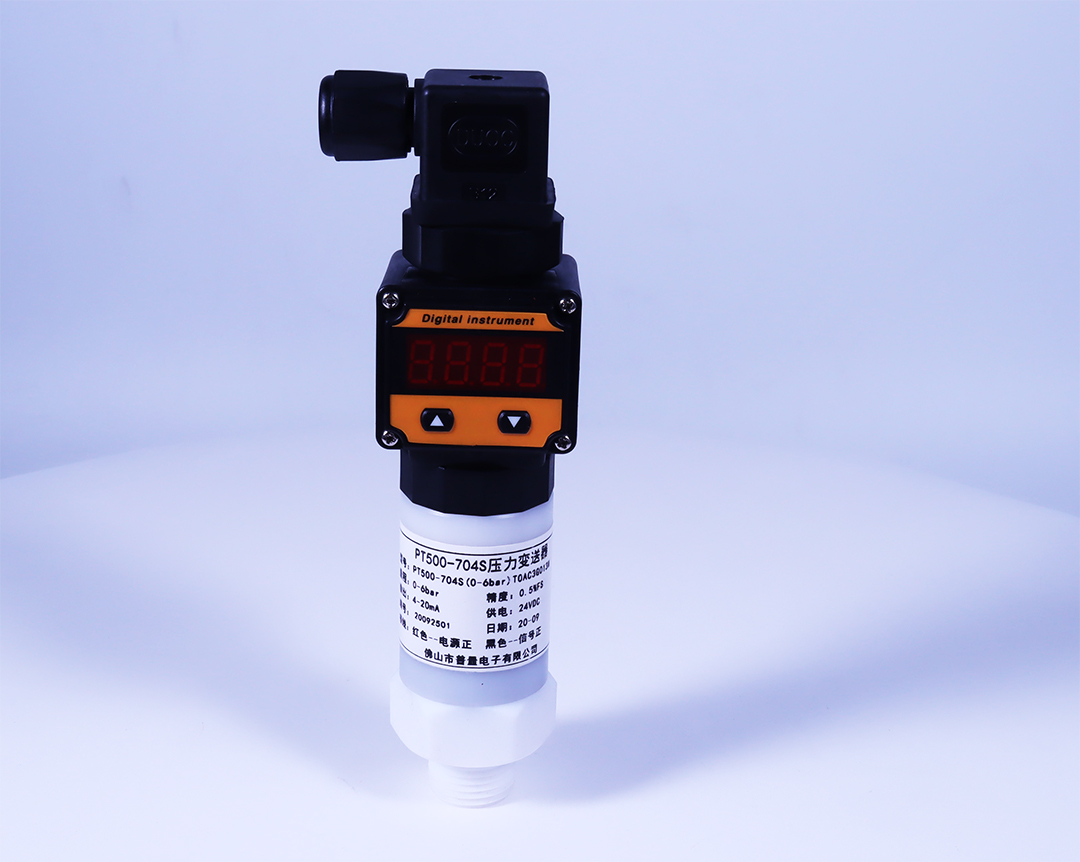

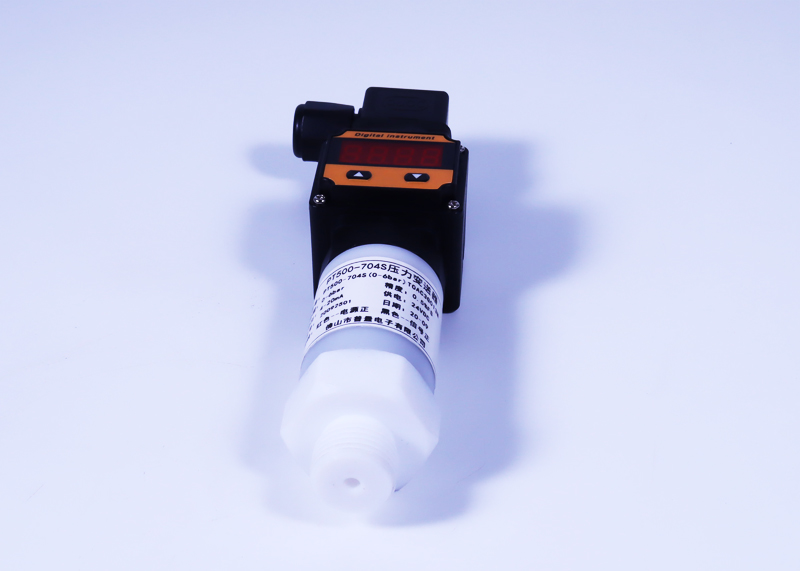

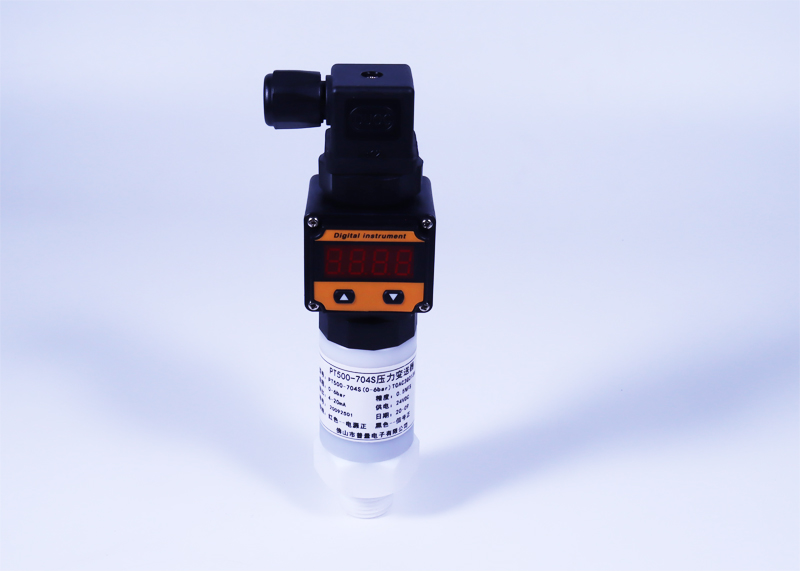

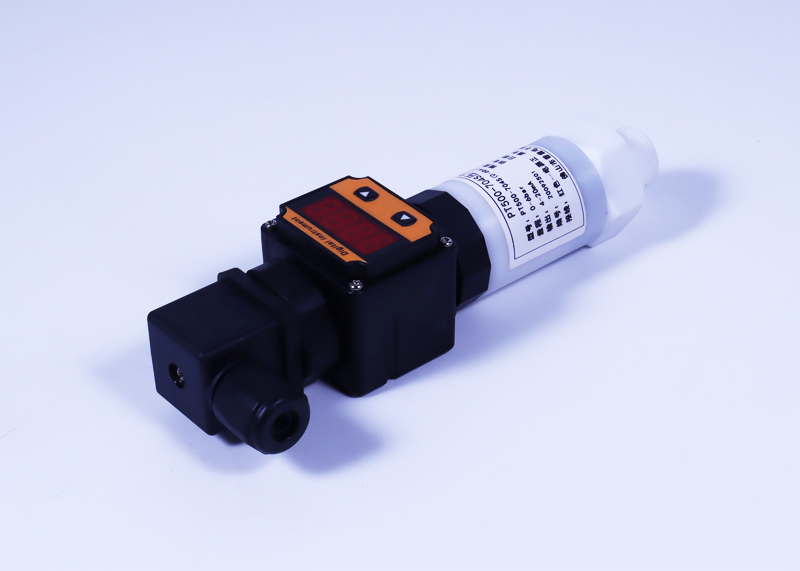

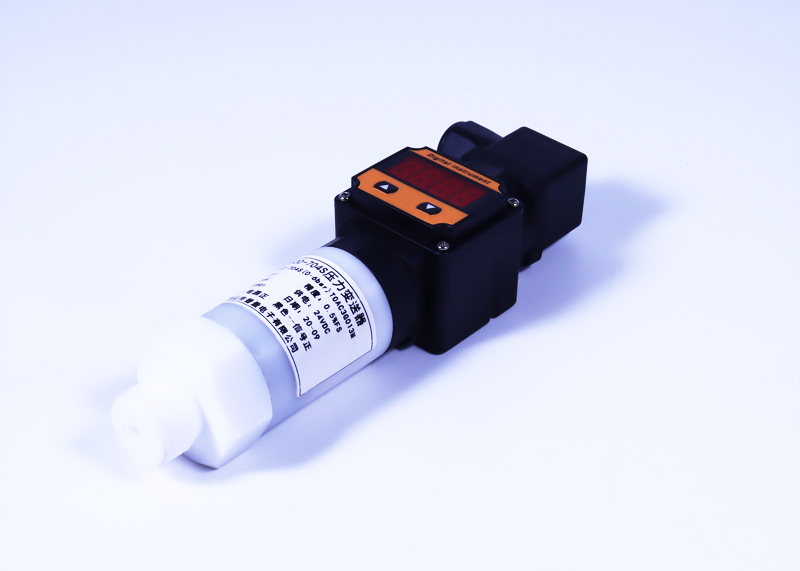

PT500-704S 耐腐蝕數顯壓力變送器

進口陶瓷壓阻芯體；
外殼材料采用耐腐蝕進口聚四氟乙烯(鐵氟龍)材料；
四位顯示表頭，小數位可調；
表頭采樣速率：10次/S；
4-20mA二線制電流輸出；
專用鐵氟龍防腐蝕電纜

常用關鍵字：
耐腐蝕數顯壓力變送器耐腐蝕數顯壓力傳感器
防腐蝕數顯壓力變送器防腐蝕數顯壓力傳感器
氯氣數顯壓力變送器氯氣數顯壓力傳感器

Model:PT500-704S
Imported ceramic piezoresistive core;
The shell material is made of Teflon imported corrosion resistant material;
Four digit display header, decimal places adjustable;
Sample rate of header: 10 times/S;
4-20mA two wire current output;
Special Teflon corrosion proof cable

Common keywords:
Corrosion resistant digital display pressure transmitter corrosion resistant digital display pressure sensor
Corrosion proof digital display pressure transmitter corrosion proof digital display pressure sensor
Chlorine digital display pressure transmitter chlorine digital display pressure sensor

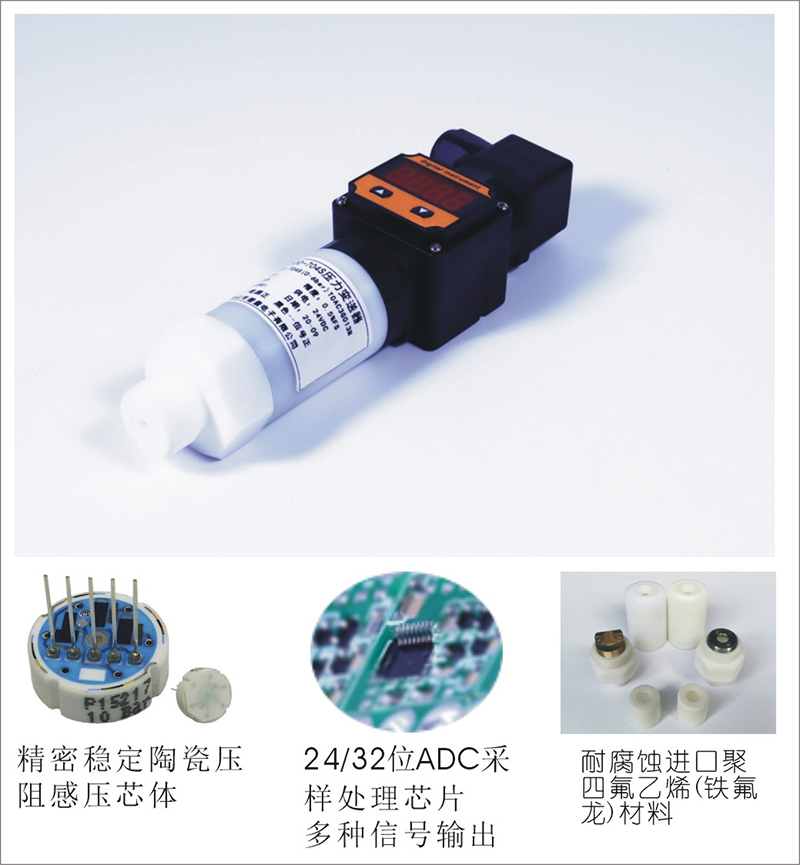

芯片：
進口陶瓷壓阻芯體；
選進的貼片工藝，具有零點、滿量程補償、溫度補償；

信號處理及輸出：
24位ADC采樣處理芯片；
DSP數字信號調理算法；
多點性線溫度校準；
電壓電流過載保護；
四位顯示表頭，小數位可調；
表頭采樣速率：10次/S；
4-20mA二線制電流輸出；

結 構：
外殼材料采用耐腐蝕進口聚四氟乙烯(鐵氟龍)材料；
DIN43650赫斯曼標準電氣連接器；
專用鐵氟龍防腐蝕電纜

應 用：
PH值3-11的液位測量與監控；
化工、氯氣等腐蝕性液體的液位測量與監控；

Chip:

Imported ceramic piezoresistive core;
The selected chip technology has zero point, full scale compensation and temperature compensation;
Signal processing and output:
24 bit ADC sampling and processing chip;
DSP digital signal conditioning algorithm;
Multipoint line temperature calibration;
Voltage and current overload protection;
Four digit display meter, adjustable decimal places;
Sampling rate of meter head: 10 times / S;
4-20mA two-wire current output;

Structure:
The shell is made of corrosion-resistant imported PTFE (Teflon);
Din43650 hesman standard electrical connector;
Special Teflon anticorrosion cable

Application:
Liquid level measurement and monitoring of pH value 3-11;
Chemical, chlorine and other corrosive liquid level measurement and monitoring;

應用領域：

天然氣管道
送風系統
供氣系統
供氣管道
恒壓供水系統
液壓設備

產品家族：

PT500-704S 耐腐蝕數顯壓力變送器

測量介質：有腐蝕性的液體、氣體
壓力形式：表壓(靜壓式)
量程：0-50KPa～5MPa；
最小量程為50KPa，最大量程為5MPa；
綜合精度：±0.25%FS；±0.5%FS；±1%FS
非線性：≤0.25%FS
重復 性：≤0.15%FS
輸出信號：
4～20mA二線制；
四位顯示，顯示范圍：-1999 - 9999
壓力表頭采樣速率：10次/S
供電電壓：24VDC(9～30VDC)通用型
絕緣阻抗：≥1000 MΩ/100VDC
負載阻抗：電流輸出: ≤800Ω；
介質/環境溫度：-20～80℃
補償溫度：0～70℃
過載壓力：150%FS
穩 定性：≤±0.15%FS/年
振動影響：≤±0.15%FS/年（機械振動頻率20Hz～1000Hz）
破壞壓力：3倍量程(量程小于350MPa)；2倍量程(量程大于400MPa)

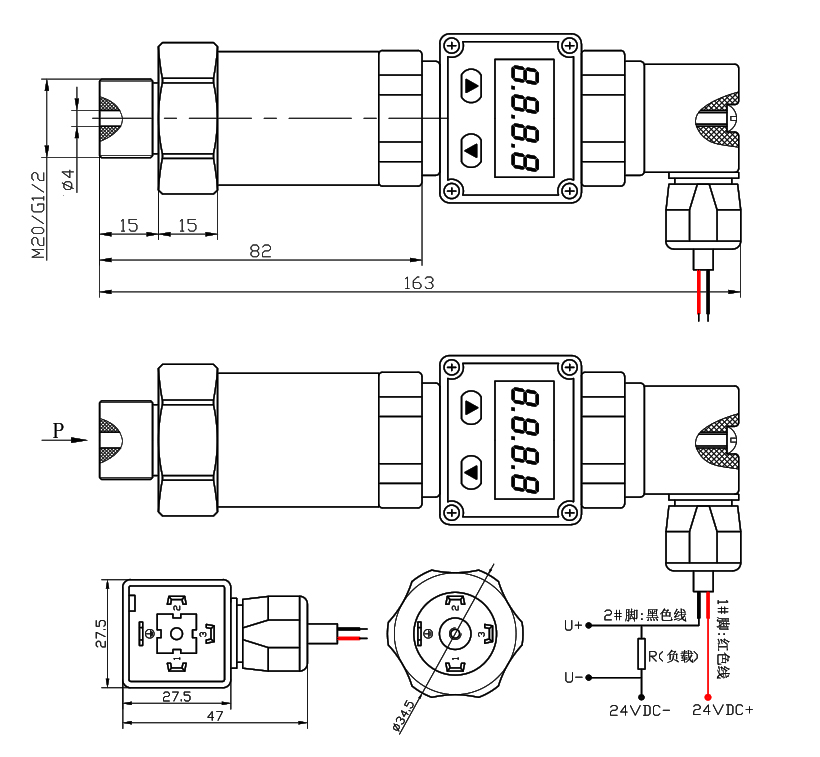

電氣連接：DIN43650赫斯曼標準電氣連接器
防護等級：IP65
連接電纜：專用鐵氟龍液位電纜
過程連接：M20X1.5,G1/2，M22X1.5，ZG1/2，1/2NPT等
連接材料：進口聚四氟乙烯(鐵氟龍)

Measuring medium: corrosive liquid and gas
Pressure form: gauge pressure (static pressure type)
Range: 0-50kpa ~ 5MPa;
The minimum range is 50kPa and the maximum range is 5MPa;
Comprehensive accuracy: ± 0.25%FS； ± 0.5%FS； ± 1%FS
Nonlinear: ≤ 0.25% FS
Repeatability: ≤ 0.15% FS
Output signal:
4 ～ 20mA two wire system;
Four digit display, display range: - 1999 - 9999
Sampling rate of pressure gauge: 10 times / S
Power supply voltage: 24 VDC (9 ~ 30 VDC) universal type
Insulation impedance: ≥ 1000 m Ω/ 100VDC
Load impedance: current output: ≤ 800 Ω； Medium / ambient temperature: - 20 ~ 80 ℃
Compensation temperature: 0 ~ 70 ℃
Overload pressure: 150% FS
Stability: ≤ ± 0.15% FS / year
Vibration effect: ≤ ± 0.15% FS / year (mechanical vibration frequency 20Hz ~ 1000Hz)
Failure pressure: 3 times of measuring range (measuring range is less than 350Mpa); 2 times of measuring range (measuring range greater than 400MPa)
Electrical connection: din43650 hesman standard electrical connector
Protection grade: IP65
Connecting cable: special Teflon liquid level cable
Process connection: m20x1.5, G1 / 2, M22x1.5, ZG1 / 2, 1 / 2NPT, etc
Connection material: imported PTFE (Teflon)

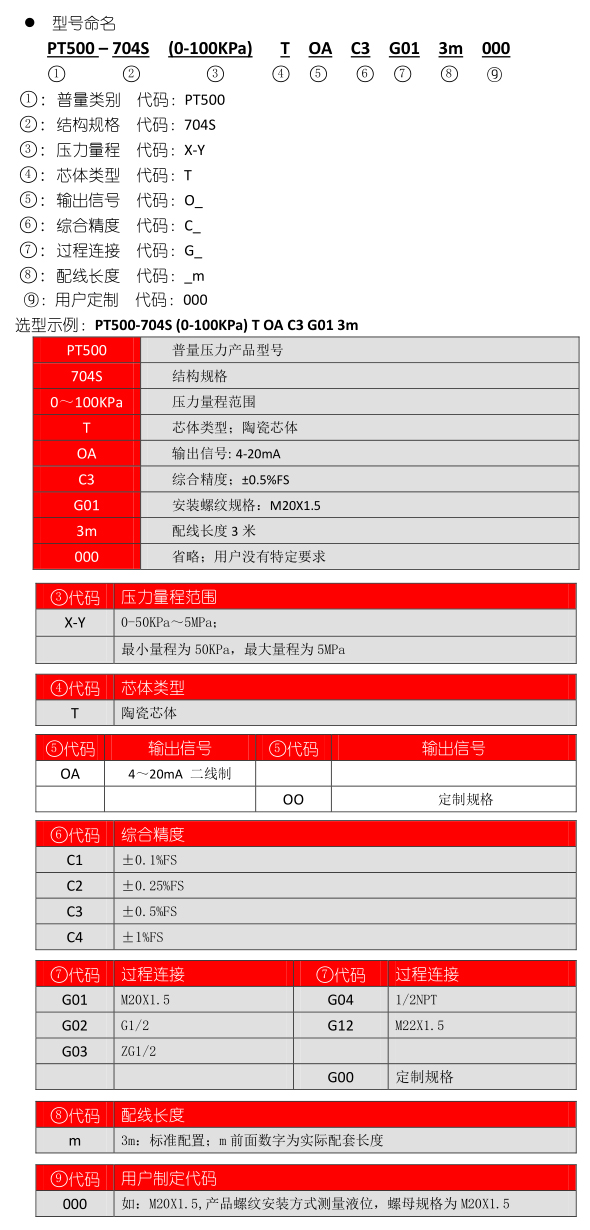

PT500-704S產品訂購注意事項
1、產品量程選擇：
為了使產品精度、壽命、穩定性等功能達到最佳效果，產品的量程選擇參照以下公式計算：
量程 = 系統最大壓力 X （1.2-1.5）倍；
產品的實際測量壓力范圍，應該在量程范圍的15%-80%；

2、產品供電及輸出：
供電范圍的選擇按產品的個輸出規格確定：
常規4-20mA，直流12-30VDC供電；
顯示表頭，四位，小數位可調；

3、用戶要了解產品的測量介質特性：
介質規格、介質溫度、介質純度（是否含有雜質或顆粒等）；

4、用戶要了解產品的安裝環境及安裝方式：
室內或室外安裝；
環境溫度；
要求的密封等級；
設備的振動范圍；
安裝方式：螺紋、法蘭、特殊結構；
安裝空間是否滿足產品外形尺寸；

1. Product range selection:
In order to achieve the best effect of product accuracy, life, stability and other functions, the range selection of the product is calculated by referring to the following formula:
Range = x (1.2-1.5) times of the maximum system pressure;
The actual measuring pressure range of the product should be 15% - 80% of the range;

2. Product power supply and output:
The selection of power supply range is determined according to the output specifications of the product
Conventional 4-20mA, DC 12-30vdc power supply;
Display head, four digits, decimal adjustable;

3. The user should understand the measurement medium characteristics of the product:
Medium specification, medium temperature, medium purity (whether containing impurities or particles, etc.);

4. Users should understand the installation environment and installation method of the product:
Indoor or outdoor installation;
Ambient temperature;
Required sealing level;
Vibration range of equipment;
Installation method: thread, flange, special structure;
Whether the installation space meets the overall dimension of the product;

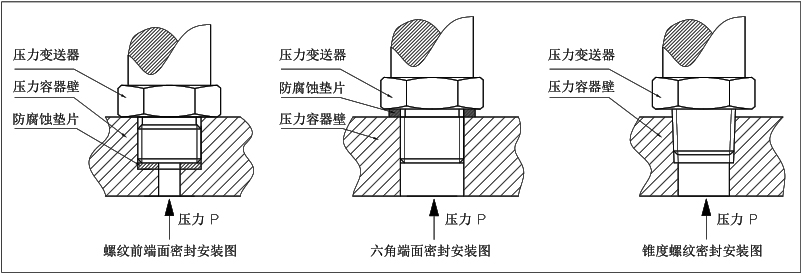

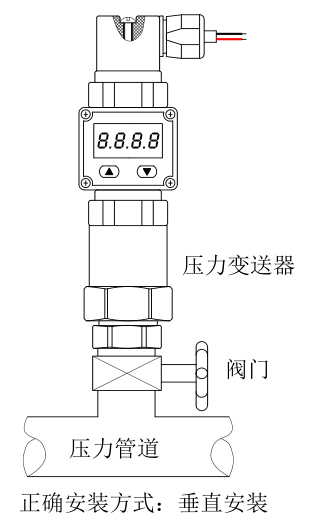

PT500-704S耐腐蝕壓力變送器產品使用注意事項
產品供電請對照產品合格證及使用說明，不同的輸出方式，供電電壓不同；
嚴禁使用硬物（如：螺絲刀、手指、鐵釘?shù)龋┤ナ沟脡盒倔w受壓力測量輸出；
電源和信號線按訂購產品規格要求，正確接線；
產品安裝及使用時，保護好電纜導氣管，電纜的導氣管嚴禁進水或堵塞；
嚴禁被測系統的介質溫度、壓力量程、激勵電壓超過變送器的額定使用范圍；
注意保護變送器引出電纜，現場使用跨度過大時，建議使用金屬管保護或架空；
測量水井，地下水、河流、水庫等水位時，注意傳感器的投入位置避開淤泥高度；
大量程水位產品，電纜線長度超過30米時，液位變器不可直接用電纜受拉力；
測量水流較急的水位時，液位變送器隨加限位管進行安裝，保證產品上不浮；
變送器的安裝位置，為了減少信息干擾保證測量精度，盡可能的避開磁場變化大輻射大的設備，如：電機、潛水泵、高壓電纜等；
野外安裝變送器，加入避雷針等防護裝置；

Precautions for PT500-704S pressure transmitter
Please refer to the product certificate and instructions for power supply. Different output modes and different power supply voltages are required;
It is strictly forbidden to use hard objects (such as: screwdrivers, fingers, nails, etc.) to make the pressure measurement output of the pressure core body;
The power supply and signal lines shall be correctly connected according to the product specifications;
When the product is installed and used, protect the cable air duct, which is strictly prohibited from water entering or blocking;
It is strictly prohibited that the medium temperature, pressure range and excitation voltage of the measured system exceed the rated range of the transmitter;
Pay attention to protect the outgoing cable of transmitter. When the span is too large, it is recommended to use metal tube for protection or overhead;
When measuring the water level of wells, groundwater, rivers and reservoirs, pay attention to the input position of sensors to avoid the height of sludge;
For a large range of water level products, when the cable length is more than 30 meters, the liquid level transformer can not be directly pulled by the cable;
When measuring the water level with rapid water flow, the liquid level transmitter is installed along with the limit pipe to ensure that the product does not float;
In order to reduce the information interference and ensure the measurement accuracy, the installation position of the transmitter should avoid the equipment with large magnetic field change and radiation as far as possible, such as motor, submersible pump, high-voltage cable, etc;
Field installation transmitter, add lightning rod and other protective devices;
